Project Name: Development of Scheduled Waste Management Centre

Location: Kota Tinggi, Johor

Installation of Rotary Klin, Ram Feeder, Wet Ash Conveyor, Secondary Combustion Chamber (SCC), and miscellaneous works.

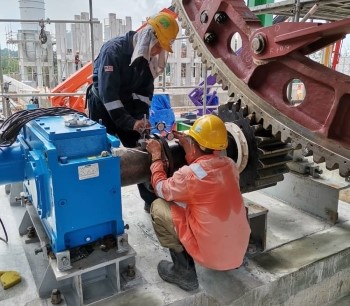

Coupling alignment of a pinion gear and drive unit









Horizontal and discharge trough of the wet ash

conveyor

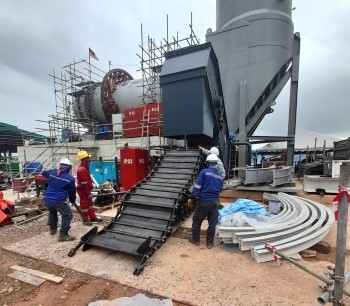

Installation of the apron conveyor mat

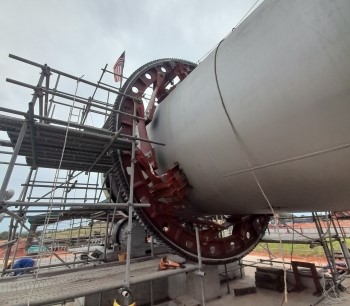

Installation of a block ring and kiln tyre









Lifting and installation of the SCC lower part

(RK Inlet)

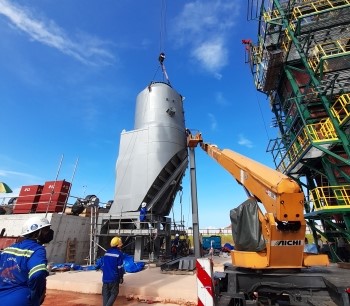

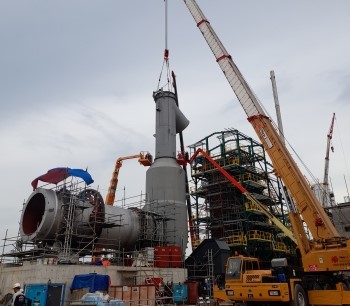

Lifting and installation of the SCC stack

(Gas Outlet)

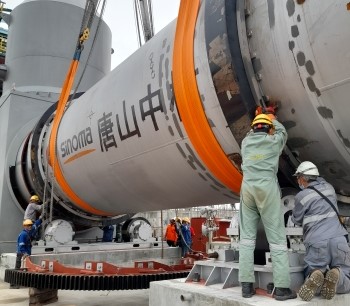

Lifting and positioning of the kiln shell onto

supporting rollers

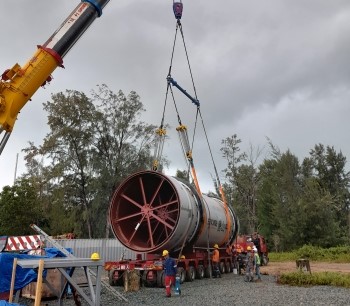

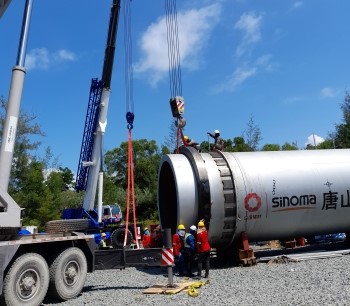

Loading of the kiln shell onto a multi-axle trailer

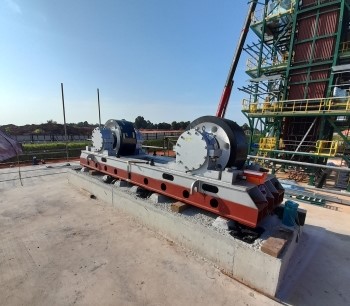

Main supporting roller and base frame no.2 in

position

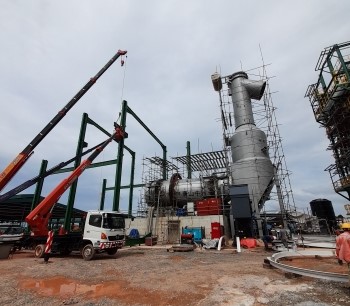

Overview of the rotary kiln, wet ash conveyor and

secondary combustion chamber







Pre-assembly of the girth gear with aglinment jigs
